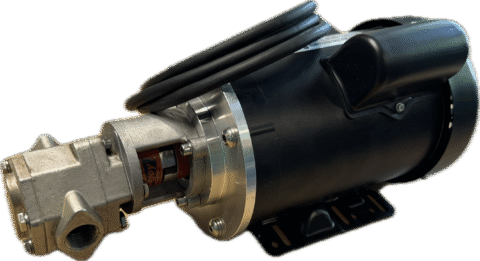

Variable Speed Oil Pump – 1-3GPM
$985.00
Variable Speed Gear Pump
1-3 Gallons/minute
Runs off a VFD
Supply with 120/230/480V
VFD not included
Bypass Optional
Additional Specs:
*Dimensions: 17″ long x 11″ wide x 7″ tall (43 cm x 28 cm x 18 cm)
*Weight: 45lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible – Rewire or add a switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 350*F
*Duty Cycle: Continuous
*Priming: Self priming
*3gpm(12 liters/min): 1″ NPT threaded ports, 1.25″ hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
Motor Specs
*Output: 1 HP
*Speed: 1725 RPM
*Volts: 230/460v(Accepts 120V with VFD)
*Hertz: 60
*Shaft Size: 5/8″
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5″ Long x 6.56″ Wide
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*Viton Seals
*Self Priming
*Cast Iron
*1/2″ NPT Ports
*No Pressure Regulator
Additional information
| Dimensions | 20 × 14 × 16 in |
|---|
