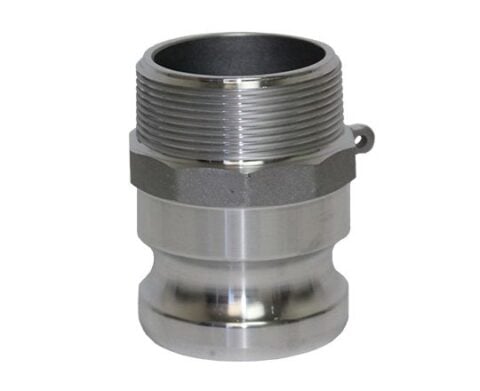

Type F – Aluminum Camlocks

Type F adapters are normally used with Type B couplers, but can also be used with Type C and D couplers or DC (Dust Cap) of identical size.

Description:
The Type F is a Male Adapter x Male NPT Thread.

How To Use:
● To connect, slide the Type F Adapter into a Female Coupler and then close the two cam handles simultaneously.
● To disconnect, lift up the cam handles and uncouple the pipe two fittings.

To Install:
● Thread the Male NPT portion into a Female NPT Thread.

Will connect with:
● The adapter portion will couple with a Female Coupler.
● The thread will connect to a Female NPT Thread. (National Pipe Thread)

Used for:
● Installing a Male Cam & Groove into a Female NPT Thread.
● Connecting with a Female Coupler of identical size.

Sizes:
● This Aluminum Adapter is offered in sizes starting from 1/2″ all the way up to 8″.

Material of Construction:
● Constructed out of Aluminum.
● For other materials scroll Down to “Related Products”.

Dimensions:

Type-F Adapter Dimensions

Size(mm)	3/4′	1′	1-1/4′	1-1/2′	2′	2-1/2′	3′	4′	5′	6′
A	32	36.7	45.5	53.4	63	75.8	91.5	119.5	145.2	175.9
B	62	72	78	81	89	99	99	107	112	115
C	25.3	35.3	40.5	42.5	48.5	50.5	51.5	53.5	54.3	57.8
